Tooling system

High rigidity Angular head

AH

PDF Download

High rigidity models are added to KSC angular heads series

Feature

  • BT50 2 surface contace2 surfaces contact by taper and top surface, improving rigidity.
  • Using high rigidity bearingsWorking load boosted by more than 3times compared with conventional type
  • Strengthened headsUsing special material, strength build up more than 2 times
  • Bigger drive shaftDrive shaft is made bigger, improve strength and rigidity

Dimensions

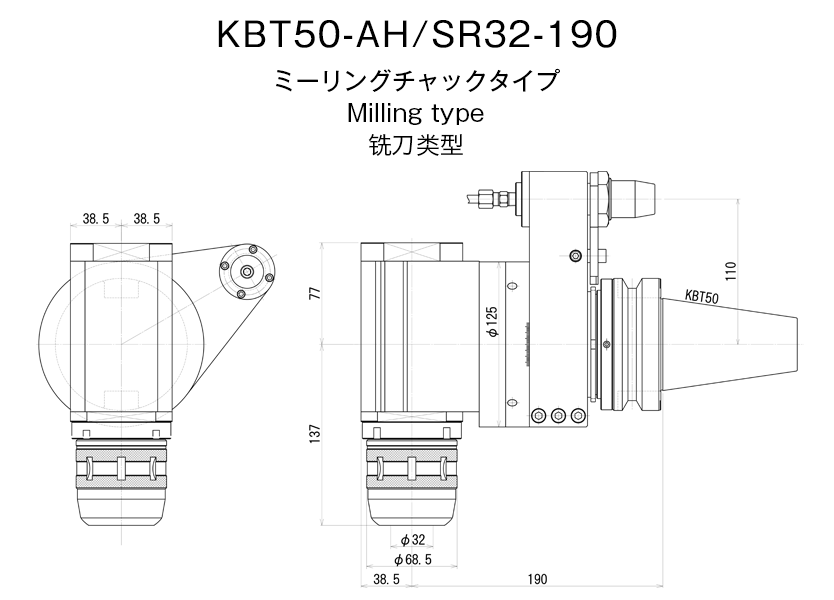

High rigidity Angular head : Dimensionszoom

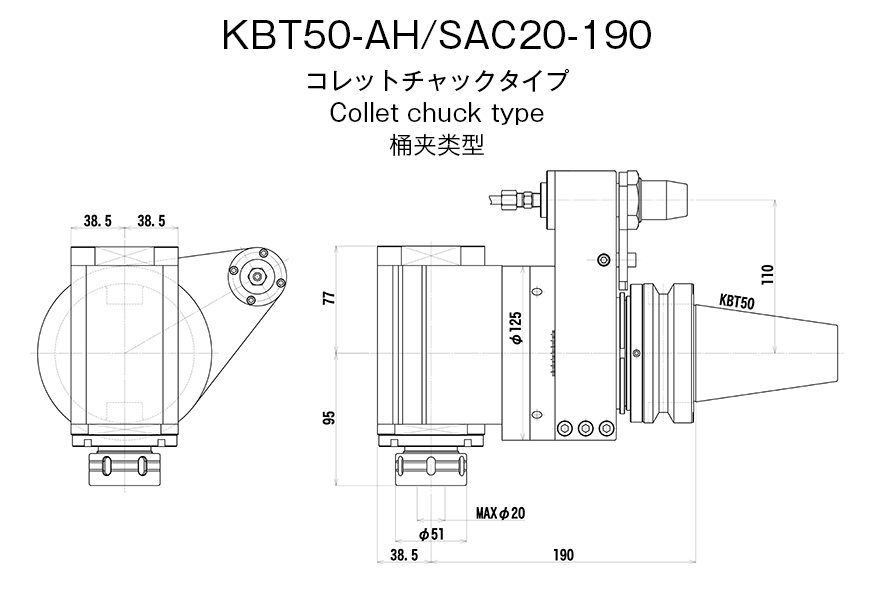

High rigidity Angular head : Dimensionszoom
High rigidity Angular head : Dimensionszoom
