Grinding
Small grinding(with auto feeding device)

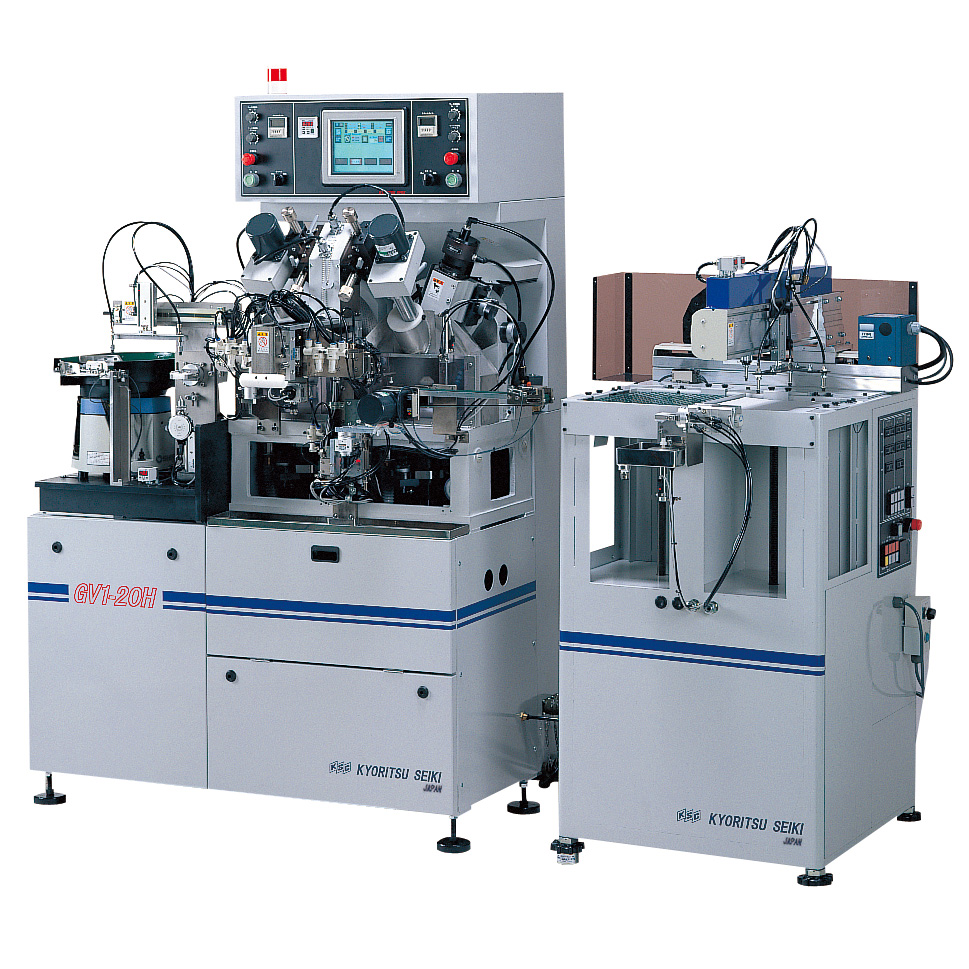

GV1-20HAW-PF-4MT
Feature
- 2 spindles, space-saving
- Each spindle equipped with independent function
- Automatic loading and unloading
- Air/hydraulic infeed drive
Spec
Number of wheel axis/processing configuration | 2-axis/vertical automatic machine | |
---|---|---|
NC equipment | - | |
Supply of lens | Parts feeder | |
Storage of lens | Storage stocker | |
chucking technology | Diaphragm chuck | |
Supported workpiece diameter | ϕ5 ~ ϕ20 | |
Supported workpiece curvature | ±SR2.5 ~ ∞ | |
Infeed axis | Workpiece axis | |
Infeed drive | Air hydraulic | |
Max. grinding wheel diameter | ϕ20 | |
Max. cutting capacity | 8mm | |
Workpiece spindle rotation | 4 ~ 55min-1(50Hz) 4 ~ 65min-1(60Hz) | |
Wheel spindle rotation | 15,000min-1(50Hz) 18,000min-1(60Hz) | |
Workpiece spindle nose shape | ϕ15 x 8female socket M12P1.75 | |
Wheel spindle nose shape | ϕ15.5 x 1/7.5 M12.5P1.0 | |
Wheel spindle drive electric motor | 0.15kW 2P | |
Cross axis accuracy | - | |
Circular axis accuracy | - | |
Infeed axis accuracy | - | |
Process data memory | - | |
Size | Width(W) | 1,990mm |
Depth(D) | 1,050mm | |
Height(H) | 1,780mm | |
Weight | 670kg |
