Grinding
Medium grinding(with auto feeding device)

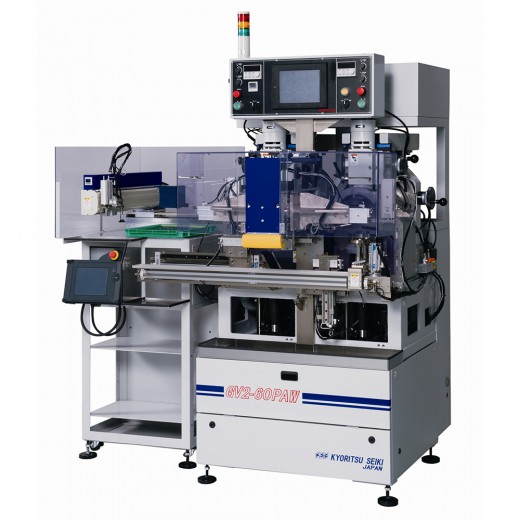

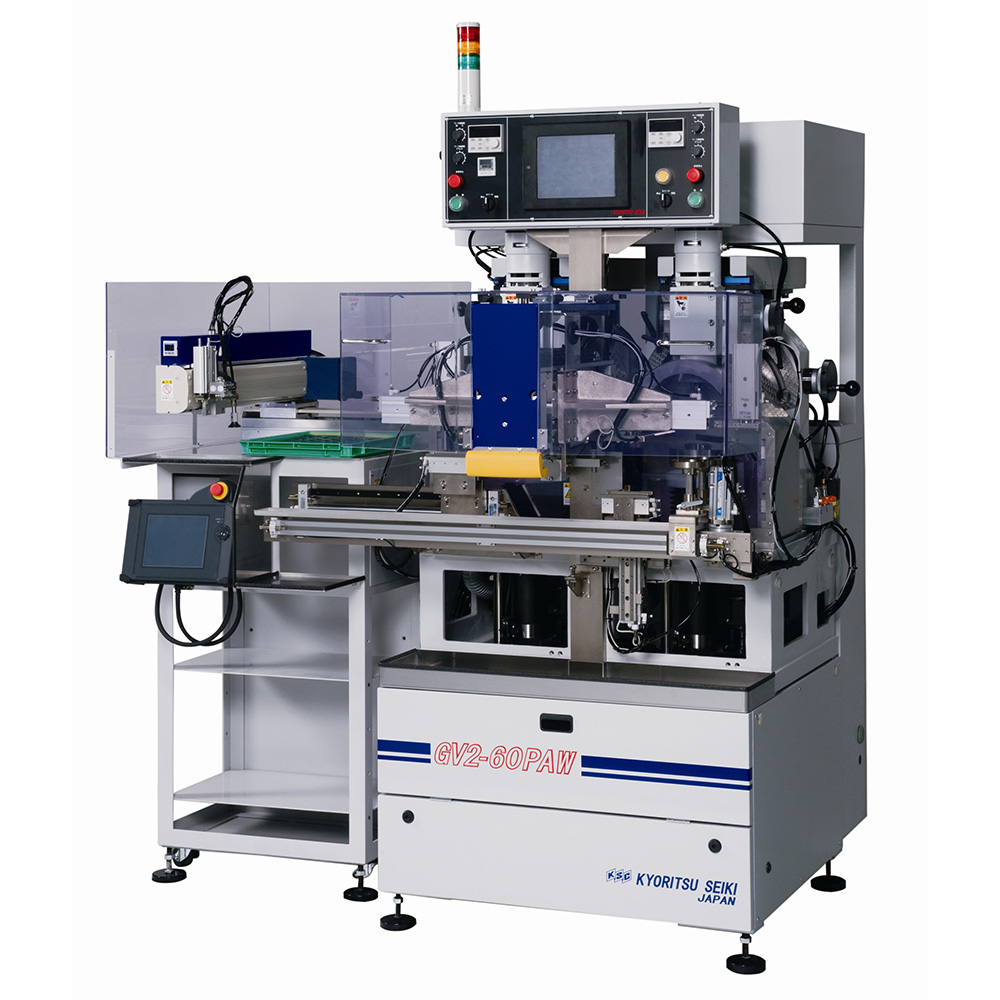

GV2-60PAW-5MT
Feature
- 2 spindles, space-saving
- Each spindle equipped with independent function
- Automatic loading and unloading
- Air/hydraulic infeed drive
Spec
| Number of wheel axis/processing configuration | 2-axis/vertical automatic machine | |
|---|---|---|
| NC equipment | - | |
| Supply of lens | Horizontal type(optional multi-stage type available) | |
| Storage of lens | ||
| chucking technology | Diaphragm chuck | |
| Supported workpiece diameter | ϕ15 ~ ϕ60 | |
| Supported workpiece curvature | ±SR7.5 ~ ∞ | |
| Infeed axis | Workpiece axis | |
| Infeed drive | stepping motor | |
| Max. grinding wheel diameter | ϕ50 | |
| Max. cutting capacity | 15mm | |
| Workpiece spindle rotation | 4 ~ 55min-1(50Hz) 4 ~ 65min-1(60Hz) | |
| Wheel spindle rotation | 8,000 ~ 15,000min-1 | |
| Workpiece spindle nose shape | ϕ18 x 8female socket M16P2.0 | |
| Wheel spindle nose shape | (standard)ϕ20 x 1/7.5taper M22P1.0 (sub-standard)ϕ15.5 x 1/7.5taper M12.5P1.0 | |
| Wheel spindle drive electric motor | 0.75kW 2P | |
| Cross axis accuracy | - | |
| Circular axis accuracy | - | |
| Infeed axis accuracy | 0.002mm | |
| Process data memory | 1-axis 60surfaces x 2 | |
| Size | Width(W) | 2,070mm |
| Depth(D) | 1,330mm | |
| Height(H) | 1,750mm | |
| Weight | 1,250kg | |
