Tool presetter
Tool presetter

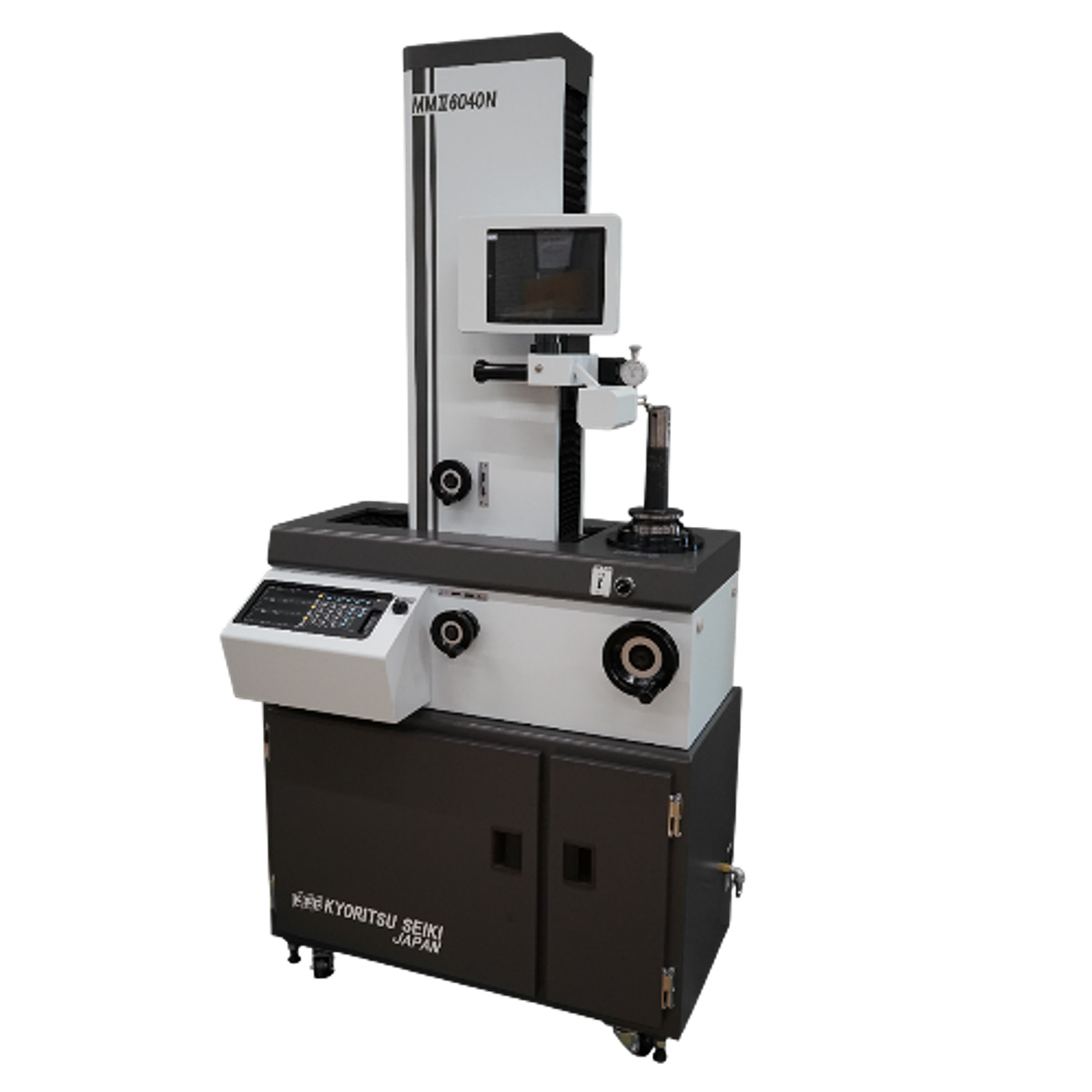

MMⅡ-6040N
Standard model
Feature
- Pneumatically assisted motionBecome easy to get to measuring point
- Length measuring capability-600mmBest equipment for medium MC

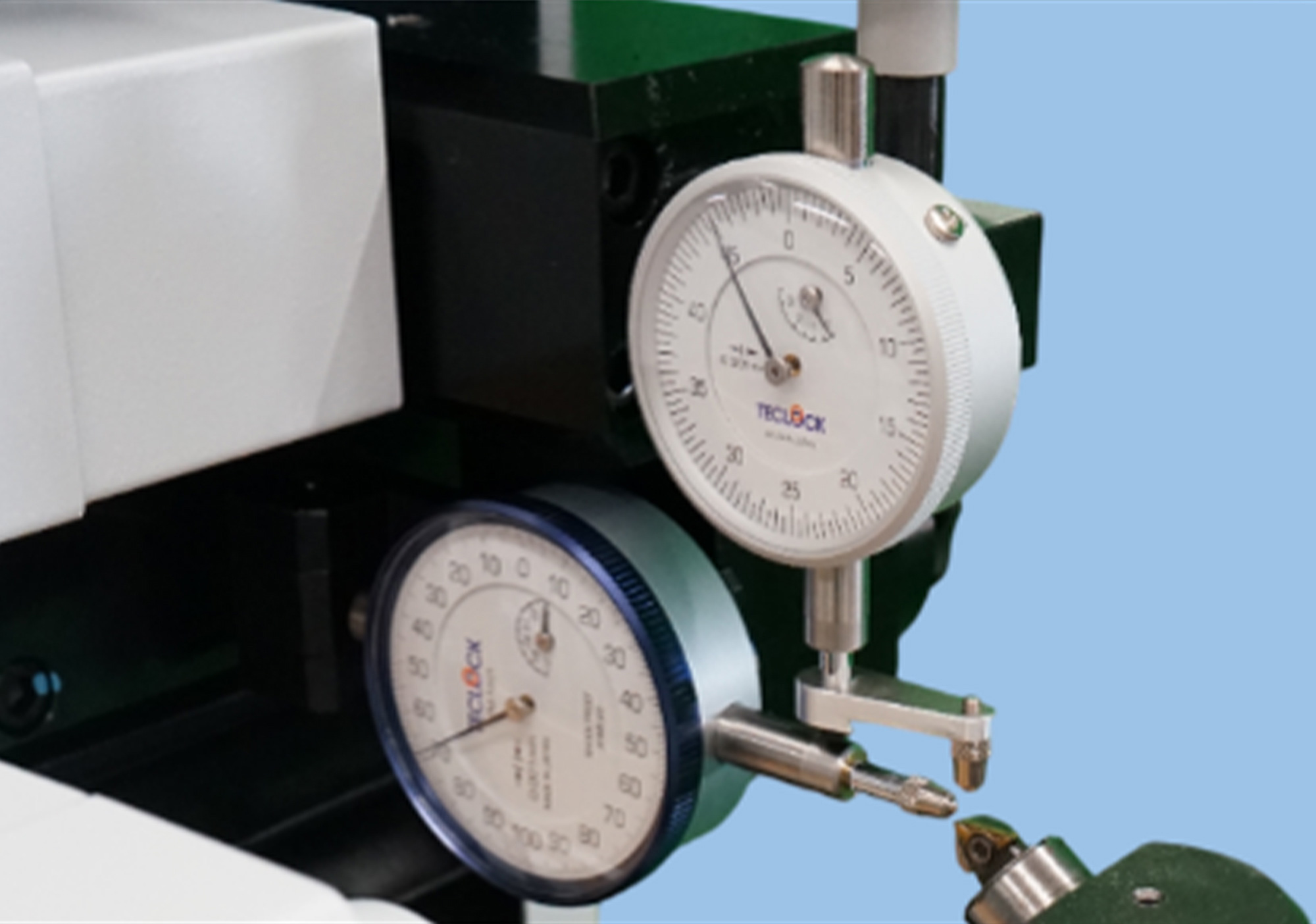

- Manual operation knobFinal positioning is smoothly controlled by manual knob
- Digital deviceEquipped with absolute origin and data output function

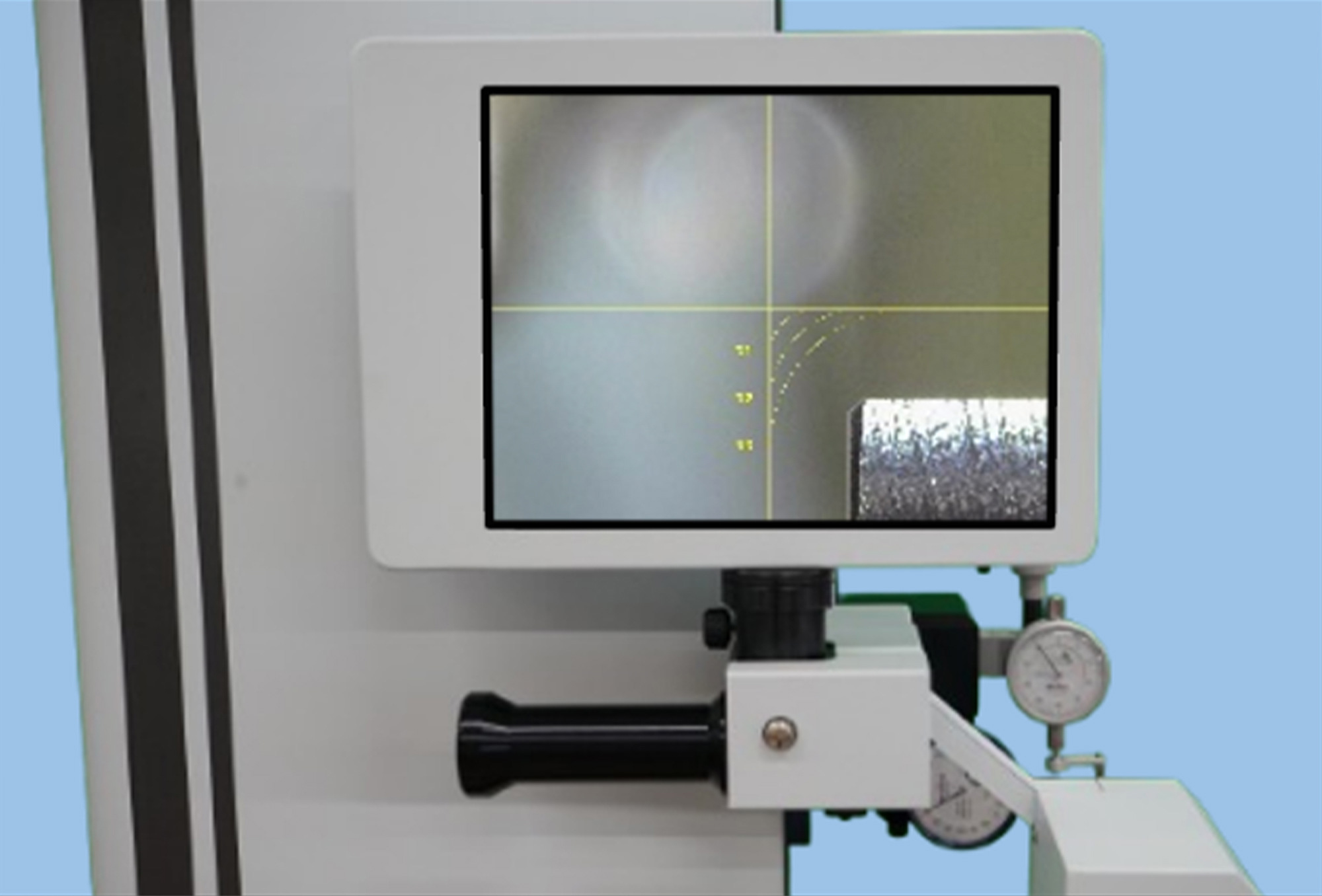

- Equipped with a tablet instead of a projectorThe chart can be changed, allowing visual adjustment of angles, R, etc
- Auto clampEasy to operate, outstanding stability
Spec
| Measuring motion method | Manual(Pneumatically supported movement) |
|---|---|
| Measuring range | Length direction(Z axis):50 ~ 600mm Radial direction(X axis):0 ~ ϕ400mm |
| Min value of counter reading | Length direction(Z axis):0.005mm Radial direction(X axis):ϕ0.002mm |
| Min value of dial gauge reading | Length direction(Z axis):0.005mm Radial direction(X axis):0.001mm |
| Air supply | 0.4MPa(4kgf/cm2) |
| Projector Magnification | 20X |
| Attach and release | Air |
| Power supply | AC100V |
| Weight | 300kg |
| Shank size | BT50, BT40, BT30, S20T, HSKA100, HSKA63, HSKA50, HSKA40, HSKA32 HSKA32 is only for tools other than center-through type Choose one shank from the size list above, if it's BT shank, please check the type of stud bolt. |
| Standard bar | Shank size: 1piece Stud bolt is provided for BT shank only Designate stud bolt type. |
|---|---|
| Wooden box | For storage of standard bar |
| Cover | 1 for spindle, 1 for machine body |
